These high-voltage, durable forklifts are built to handle the toughest jobs in the most extreme conditions. Operating for 12 hours on .5 to 1.5 hours of charging (depending on conditions), our heavy-duty B-X Series offers you an alternative to the complex maintenance and emissions of a diesel forklift without sacrificing any power or performance. Plus, they significantly reduce your cost of ownership, saving you an estimated $58,000 over the course of 10 years.
LOAD CAPACITY
22,000 lbs. to 29,000 lbs.TIRE TYPE
PneumaticBATTERY TYPE
618.2V Li-ion

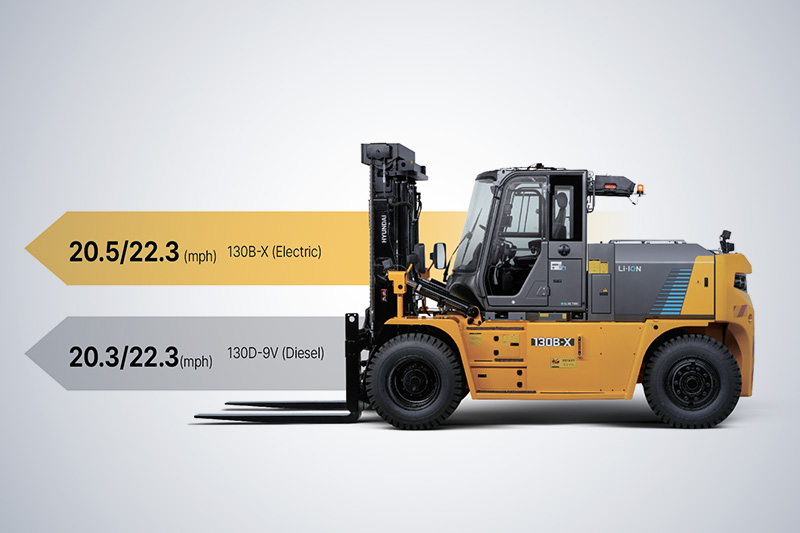

FAST WORKING SPEEDS
The B-X delivers travel, lift, and lower speeds comparable to diesel forklifts, including travel speeds as fast as 22.4 mph, all with superior gradeability and a tighter turning radius.

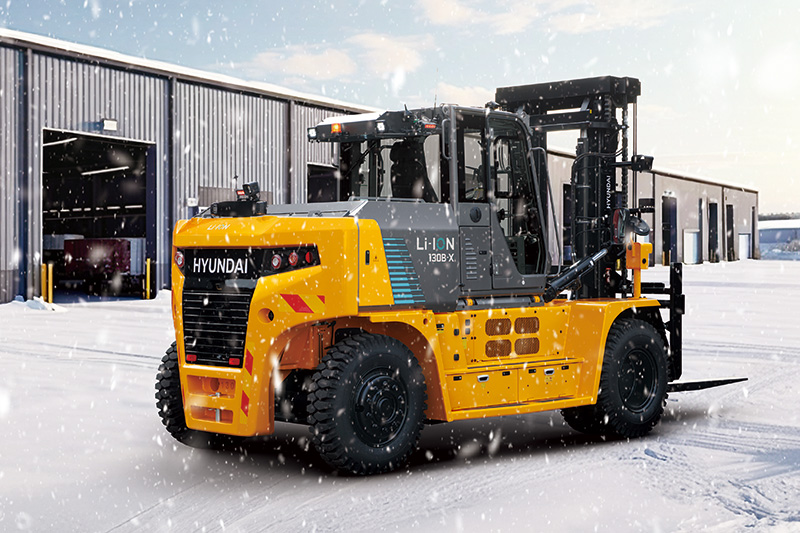

ALL WEATHER OPERATION
The B-X Series is IP67 and IP69K rated allowing it to work and be stored in even the wettest, harshest weather and able to endure intensive wash-downs and rigorous cleanings.

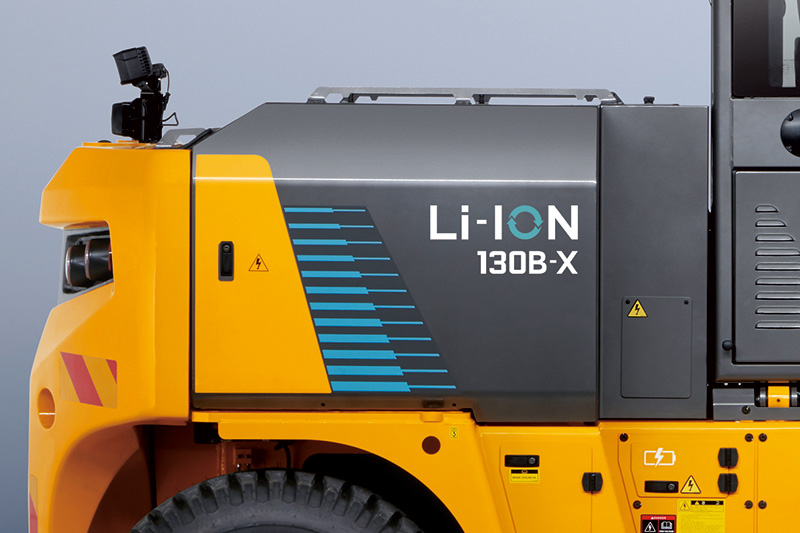

STANDARD LI-ION BATTERY
High-performance lithium batteries extend run times, offer fast charging to improve up-time, and include an advanced heating & cooling system for optimum performance in all climates.

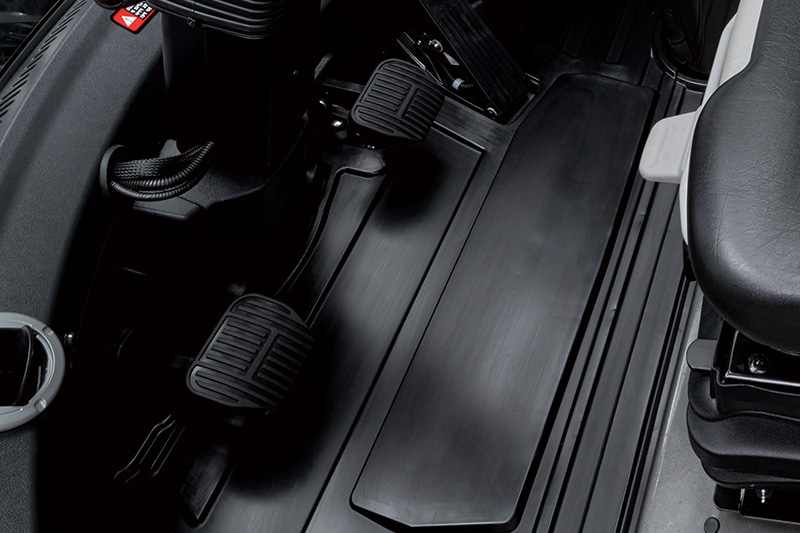

DUAL BRAKE PEDALS
For added safety, convenience, and to help drivers feel comfortable moving from an engine powered forklift to an electric, the B-X Series has dual brake pedals for two-foot driving.

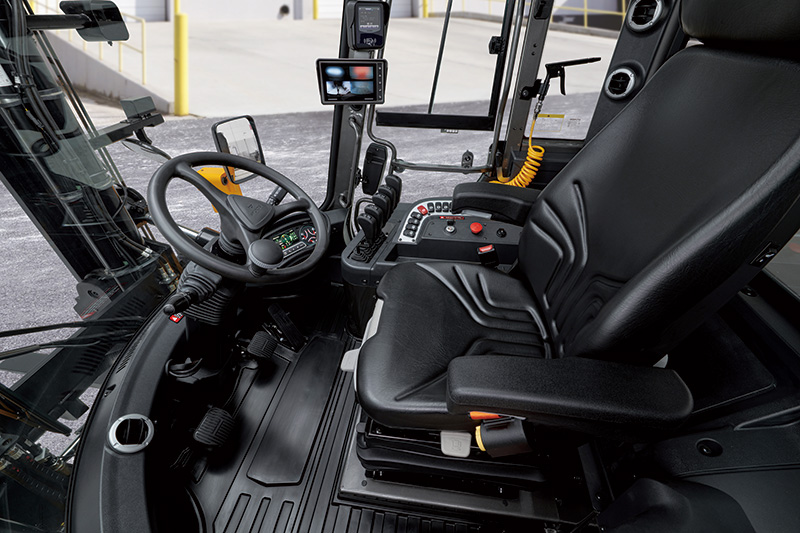

GREATER CABIN COMFORT
The spacious cabin includes outstanding visibility, a Grammer™ air suspension & swivel seat, constant heating & cooling, heated mirrors, a convenient 12V socket and USB charger, and more.

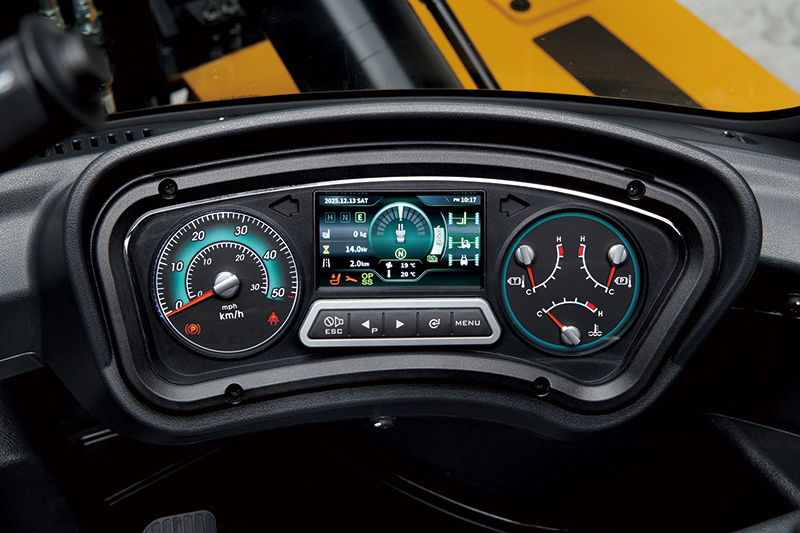

4.3-INCH LCD CLUSTER
The LCD cluster offers real-time battery monitoring, diagnostics, data logging, safety features, maintenance tracking, and easy adjustment of driving modes to optimize productivity.

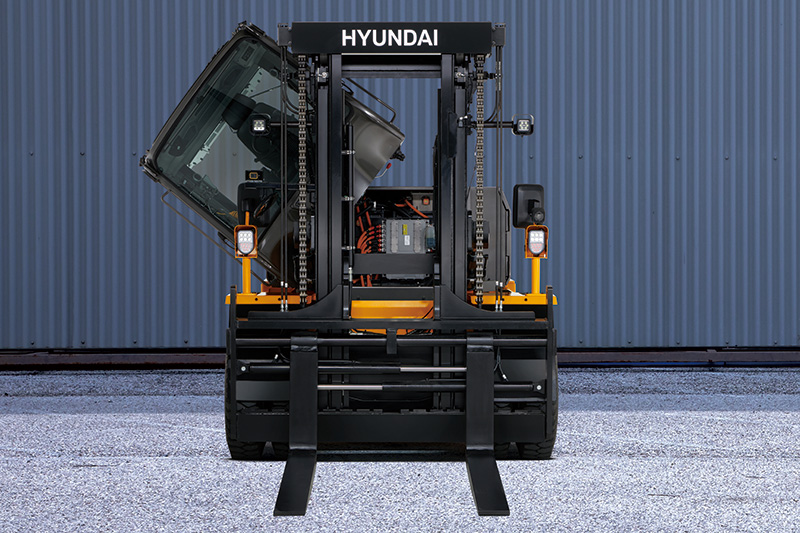

TILTING CABIN
The B-X cabin tilts up 52 degrees for easier maintenance and access to key components, such as the powertrain and hydraulic and electric systems, all to minimize downtime and cut costs.

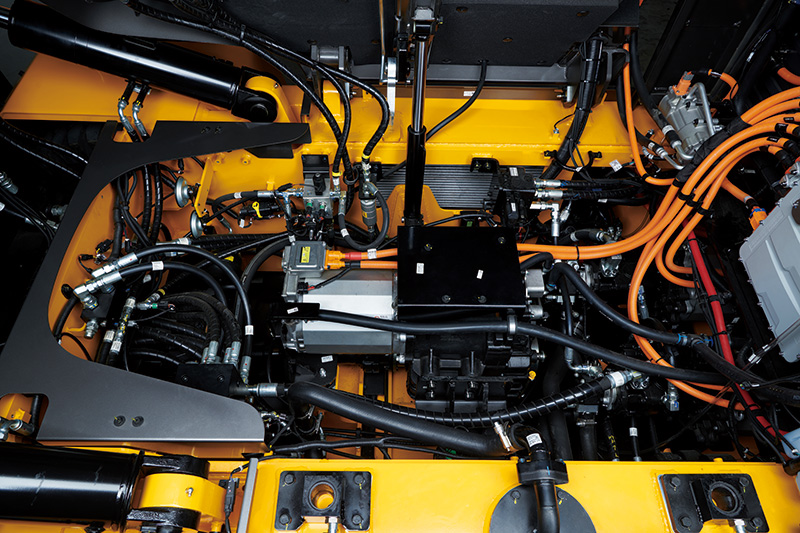

HIGH-VOLTAGE SAFETY
The B-X features high-voltage cables covered in bright orange material for easy ID and include thick insultation and robust protection technology for greater operational safety.

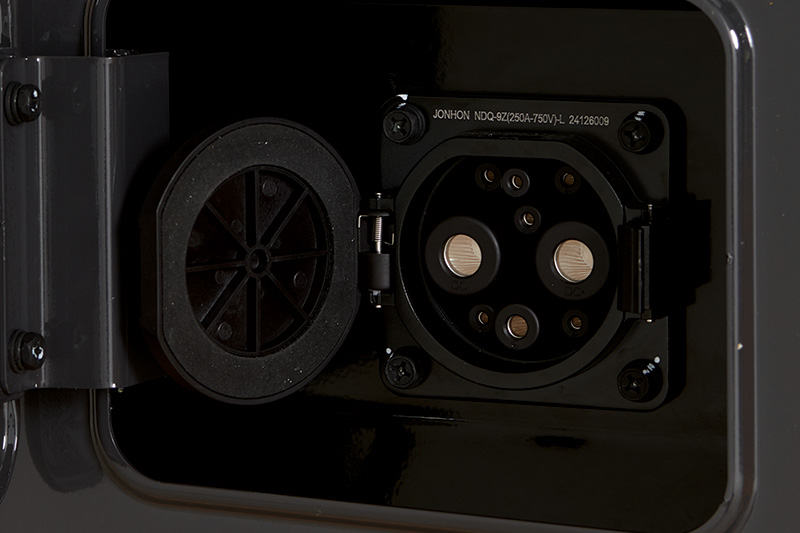

INDOOR & OUTDOOR CHARGING
With its IP54-rated water and dust protection, the charger can be installed outdoors and includes safety features to ensure stable charging under all conditions. In addition, the charger can be configured to charge four trucks sequentially.

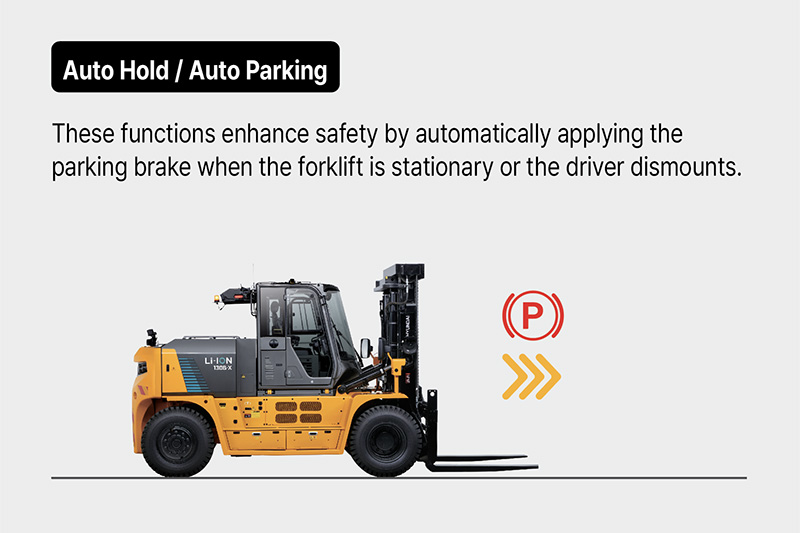

AUTO PARKING
To prevent accidents and safeguard your workplace and the equipment, the B-X Series parking brake is automatically applied when the forklift is stationary or the driver dismounts.

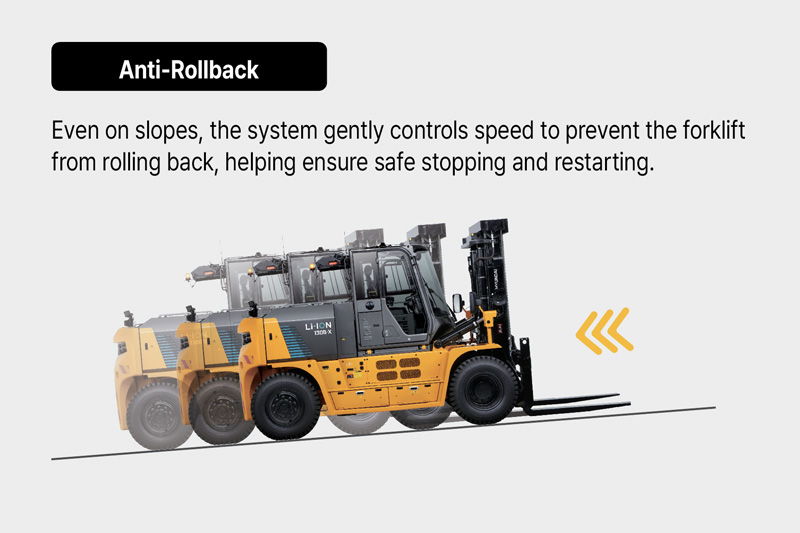

ANTI-ROLLBACK CONTROL
This feature prevents unintended movement while operating the forklift on a grade, incline or decline, giving the operator greater confidence and increasing job site safety.

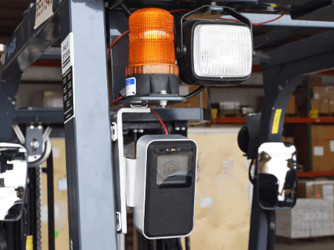

HI-VISION
Hi-Vision is Hyundai’s new, innovative AI-powered safety system. Incorporating onboard cameras with trained computer vision models, Hi-Vision provides real-time data and behavioral monitoring to ensure optimum operator performance and safety.
| LOAD CAPACITY | 22,000-29,000 lbs. |
| TRAVEL SPEED (UNLOADED) | 22.4 mph |
| VOLTAGE | 618.2V |
| LENGTH TO FACE OF FORKS | 179.9-180.3 in. |
| OVERHEAD GUARD HEIGHT | 115.4 in. |
| OVERALL WIDTH | 96.5 in. |
| TURNING RADIUS | 171.3 in. |
