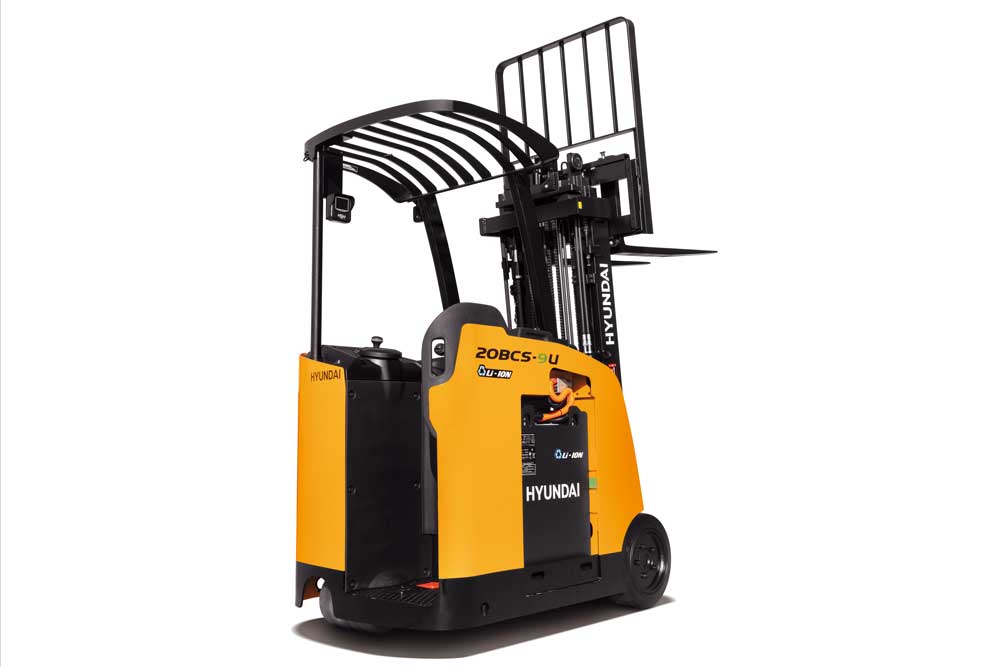

This new, high performance forklift line offers operators and owners significant design advantages to improve productivity, reduce operator fatigue, cut downtime, and bring efficiency and economy to virtually any application. Beyond its optimized ergonomics, the BCS-9U is built to easily navigate tight spaces, designed to provide ready access to key maintenance points, and engineered to deliver the maximum benefits of advanced Li-ion battery performance.
LOAD CAPACITY
3,000-4,000 lbs.TIRE TYPE
UrethaneBATTERY TYPE
36V Lead-Acid or Li-ion

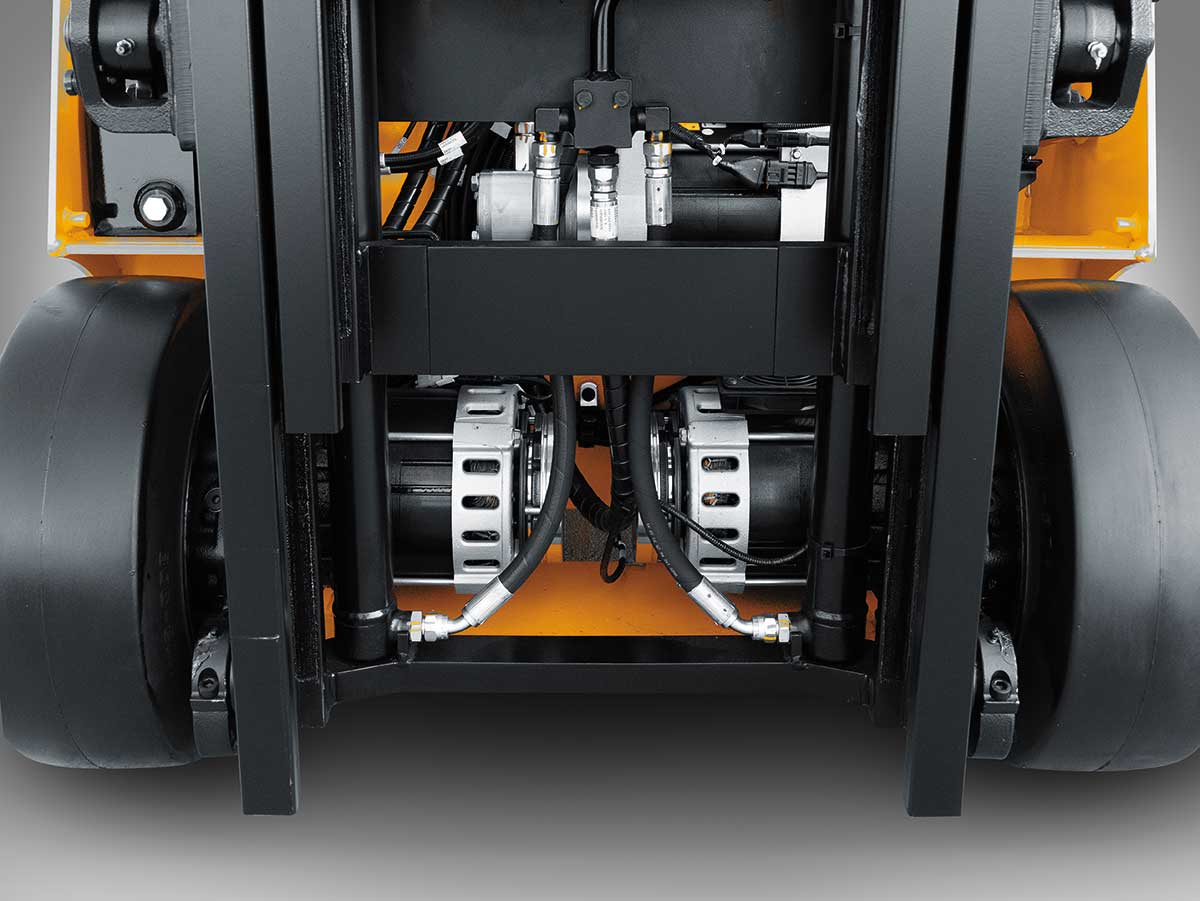

DUAL DRIVE MOTOR & AUTO PARKING SYSTEM
The powerful, efficient dual drive motor delivers superior throughput with faster speeds. It’s paired with electric disc brakes and an auto parking system for surer stopping.
HIGH TECH, ULTRA QUIET ZAPI CONTROLLER
The efficient, 8 kHz high-frequence controller delivers smooth operation and includes built-in protection for low and high voltage, overheating, and fault logging.
EFFICIENT AND RELIABLE AC DRIVE & PUMP MOTOR
The AC motors are optimized for efficiency and low noise and includes sensors to continually monitor motor temperature for greater reliability and long equipment life.

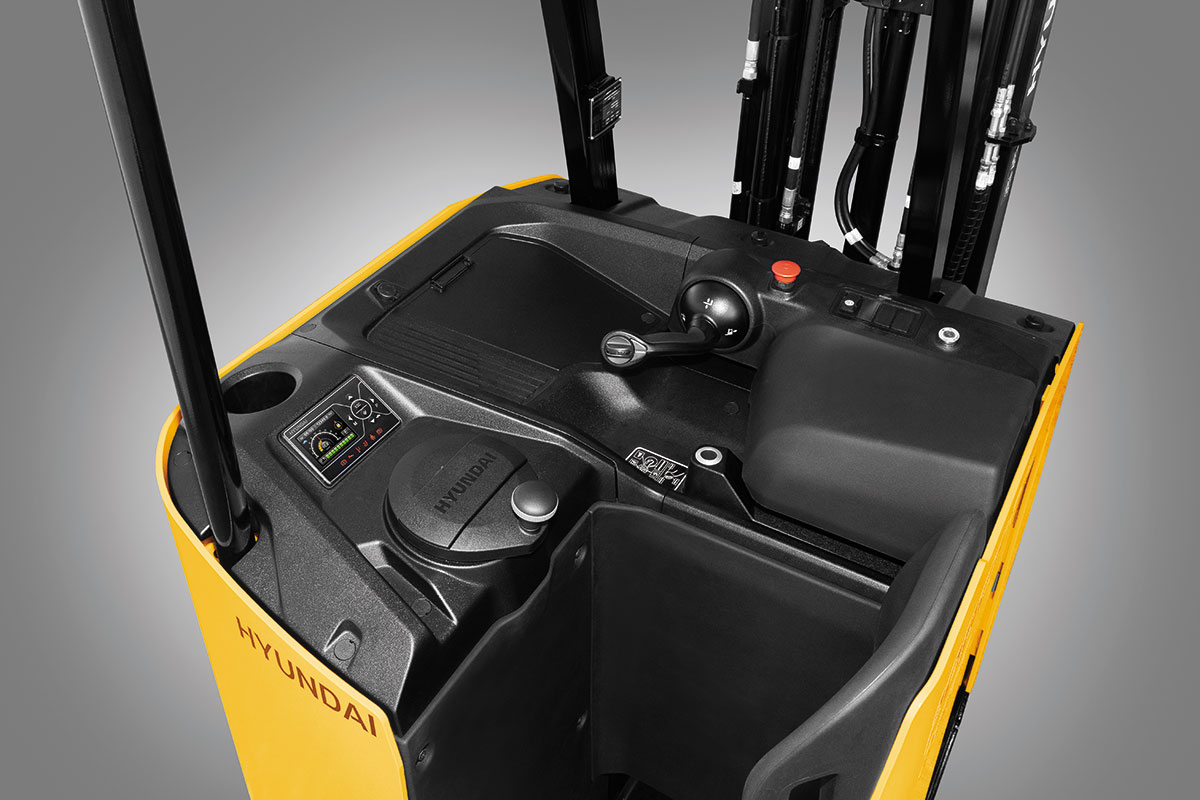

MAXIMUM COMFORT OPERATOR COMPARTMENT
The ergonomic, user-friendly control panel design features increased knee, back, and hip padding to deliver outstanding comfort and support over long shifts.

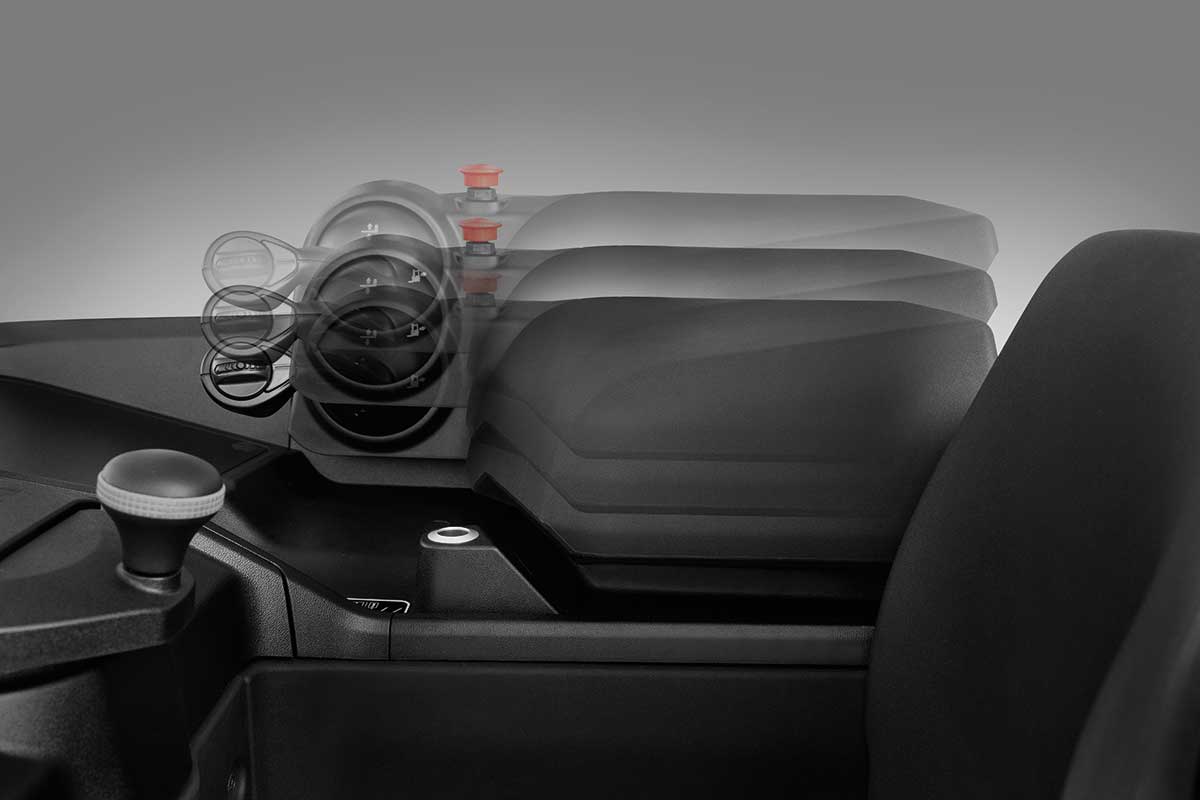

ADJUSTABLE ARMREST AND LARGE BACKREST
To keep operators comfortable and productive over long shifts, the ergonomically optimized adjustable armrest pad provides secure support for operators of all sizes.

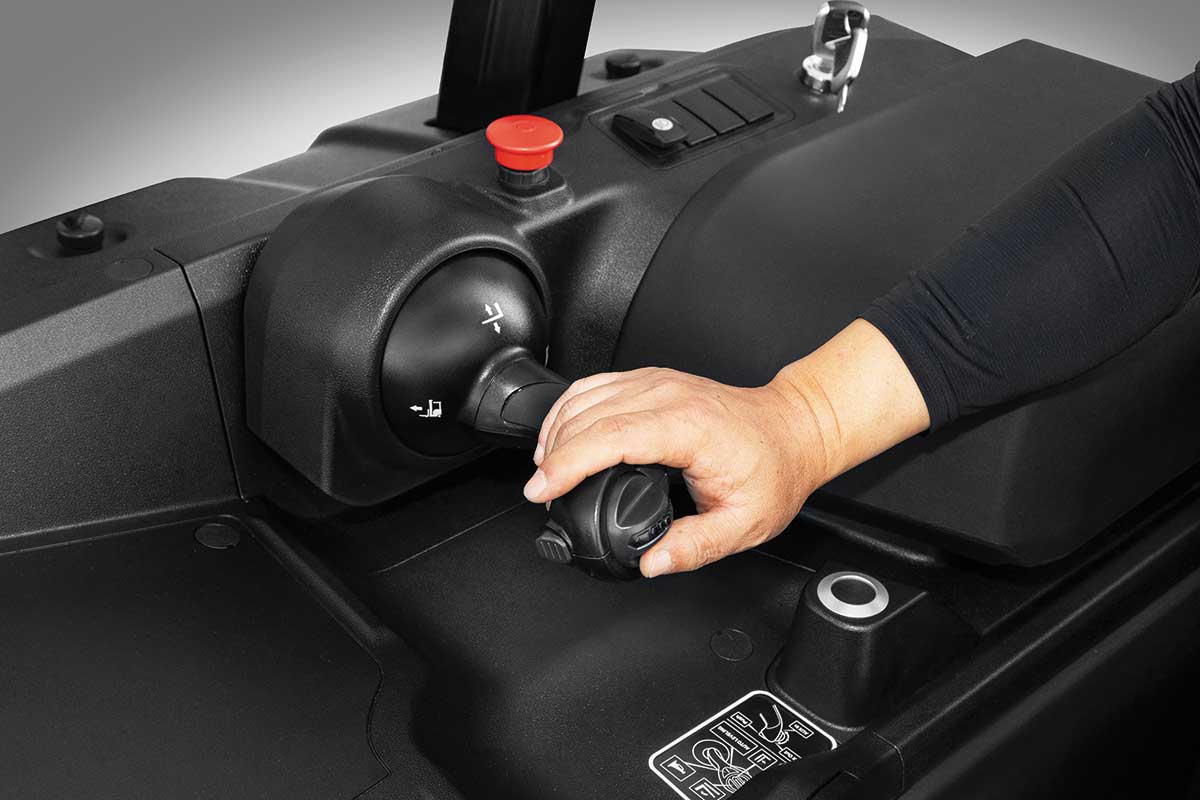

SMOOTH OPERATING JOYSTICK LEVER
Operators can work faster with less strain thanks to the redesigned control hand that delivers precise one-hand direction and speed control with minimal effort.

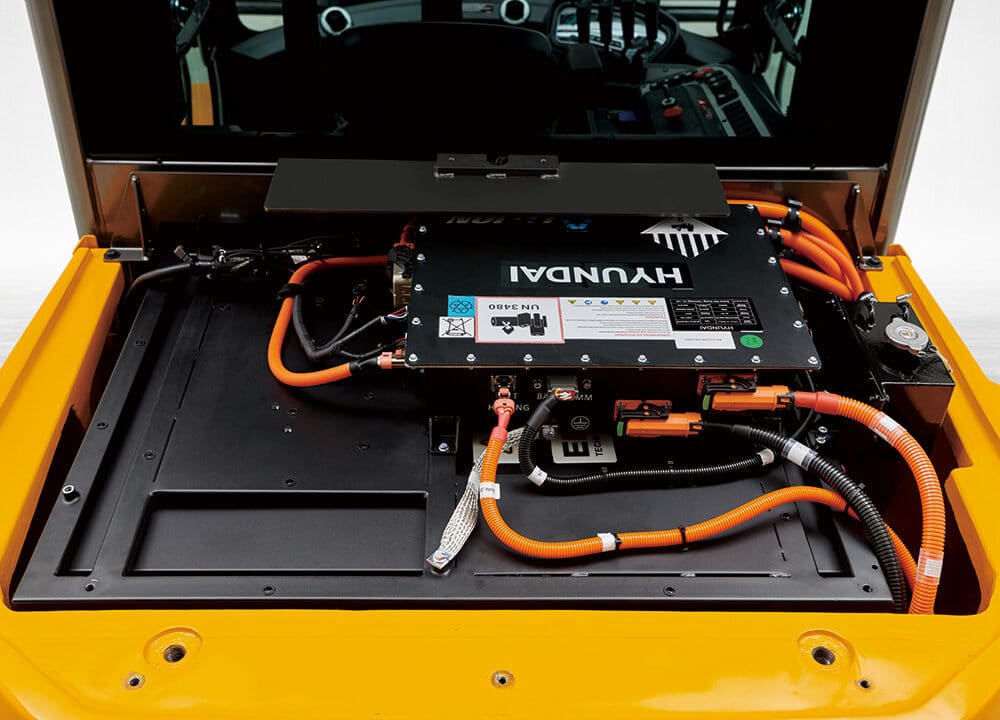

FAST AND EASY BATTERY REPLACEMENT
To cut downtime, the BCS-9U has an easy-access side battery removal assembly and includes a side cover that prevents vehicle operation if not securely fastened.
READY ACCES TO ALL KEY SERVICE POINTS
The BCS-9U makes it easy to service essential components, including the fuse box, diagnostic port, grease fittings, the steering system, tank filler, and more.

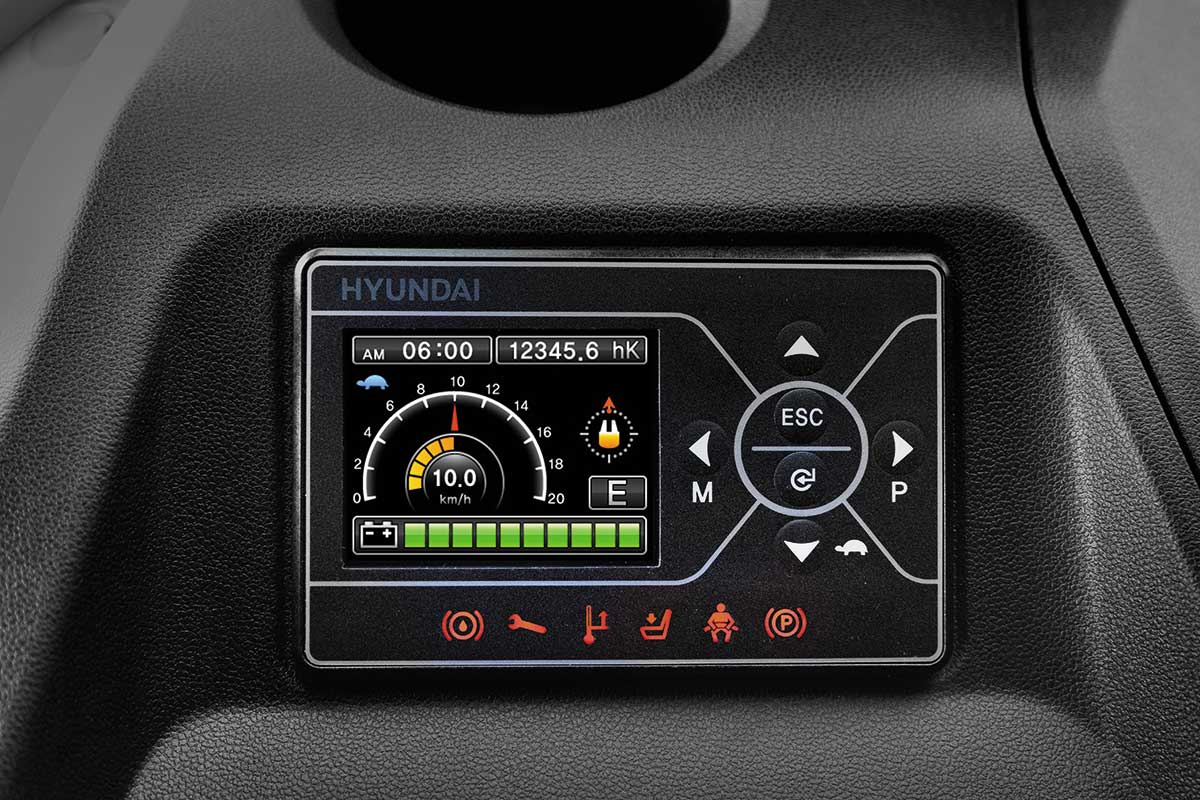

ONBOARD DIAGNOSTICS THROUGH THE LCD CLUSTER
The multifunction cluster’s onboard diagnostics include maintenance tracking with safety and maintenance alerts to continually monitor equipment status.
STRONG, DURABLE OVERHEAD GUARD
The overhead guard on the BCS-9U meets ISO 6055 and applicable ANSI standards to help safeguard operators in tough environments and while performing hazardous work.

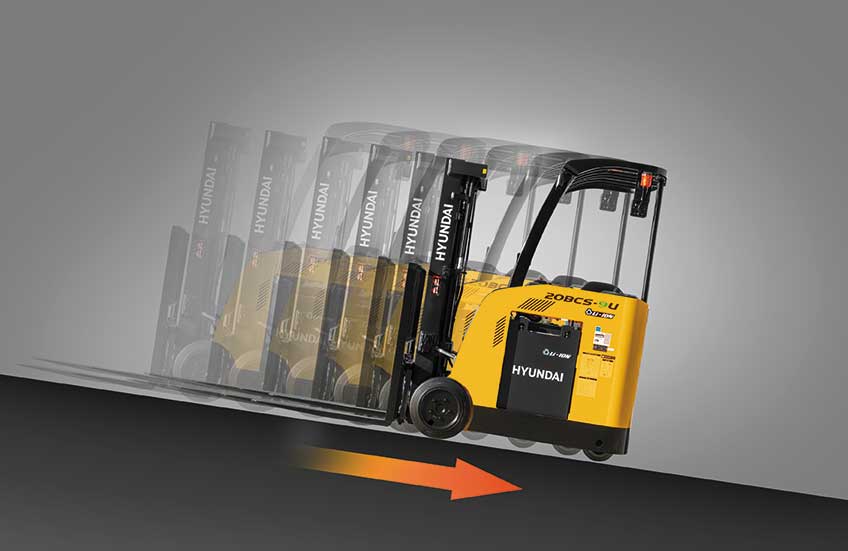

ANTI-ROLLBACK HILL ASSIST CONTROL
This key feature prevents the machine from rolling back after coming to a stop on inclines or declines, important when working on ramps, slopes and uneven surfaces.
BLUE SPOTLIGHT & RED ZONE LIGHTING
The standard blue spot projects a blue light in front of or behind the forklift, while the optional red zone creates a visual safety boundary around the forklift.
| Load Capacity | 3,000-4,000 lbs. |
| Travel Speed (Unloaded) | 7.5 mph |
| Voltage | 36V |
| Length to Face of Forks | 67.99-70.74 in. |
| Overhead Guard Height | 87.9 in. |
| Overall Width | 42 in. |
| Turning Radius | 55-57.7 in. |
