The new D-9V Series meets Tier 4 final emissions regulations and offers significant improvement in performance while raising the bar for fuel efficiency, servicing ease, and rugged durability. Throughout these powerhouse machines you’ll find design features that improve operator productivity and comfort and innovations that assure greater reliability and a lower cost of ownership. So, if you’re looking for a forklift that can do more for less, take a good look at the D-9V.
LOAD CAPACITY
15,500-17,500 LBS.TIRE TYPE
PneumaticENGINE
Hyundai DN03

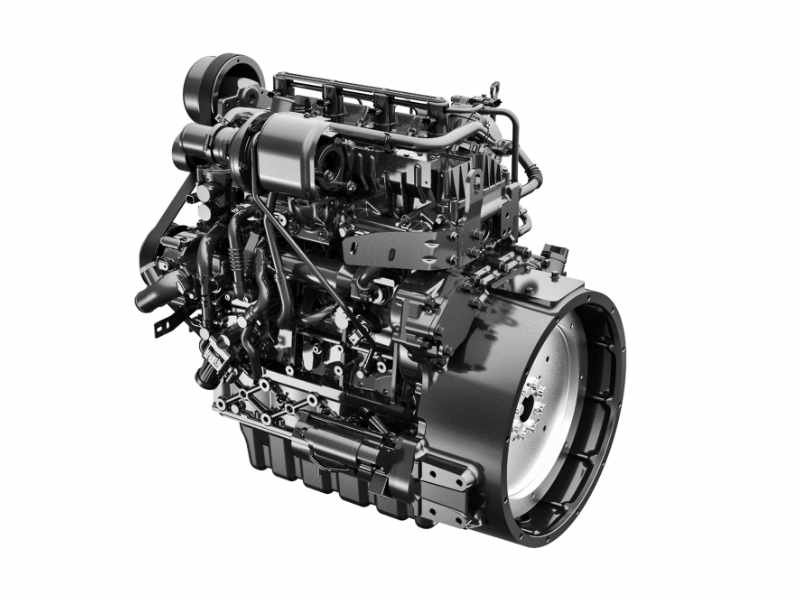

ECO-FRIENDLY FUEL EFFICIENT ENGINE
The powerful Hyundai DN03 can handle the toughest tasks and meets Tier 4 final emission regulations while making the D-9V 11-12% more fuel efficiency than previous models.
SMOOTH SHIFTING

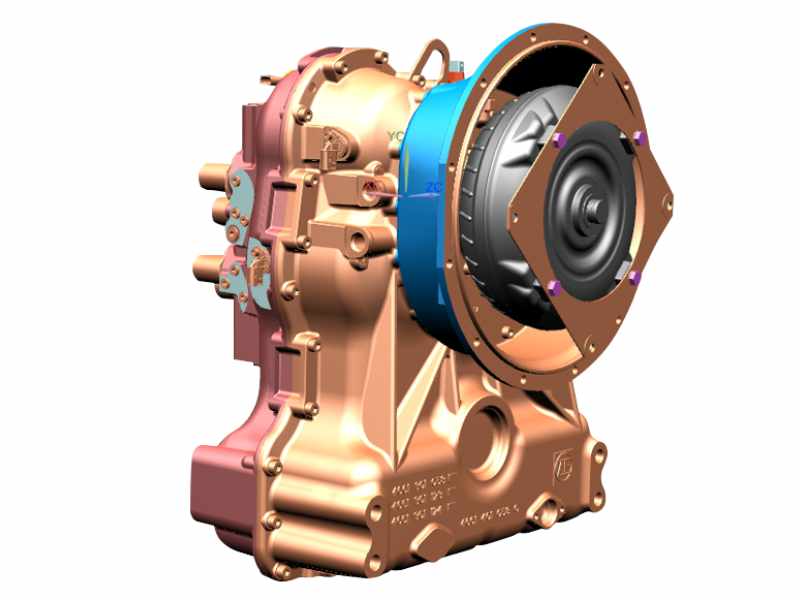

ZF TRANSMISSION
This reliable transmission is optimized for smooth, efficient, and responsive operation. Its dependability is enhanced with a non-contact shift lever design unaffected by moisture.
RUGGED, RELIABLE HDX DRIVE AXLE
The HDX drive axle improves rigidity in the differential and final reduction gears to handle the heaviest loads, increase durability, and improve parking brake holding power.

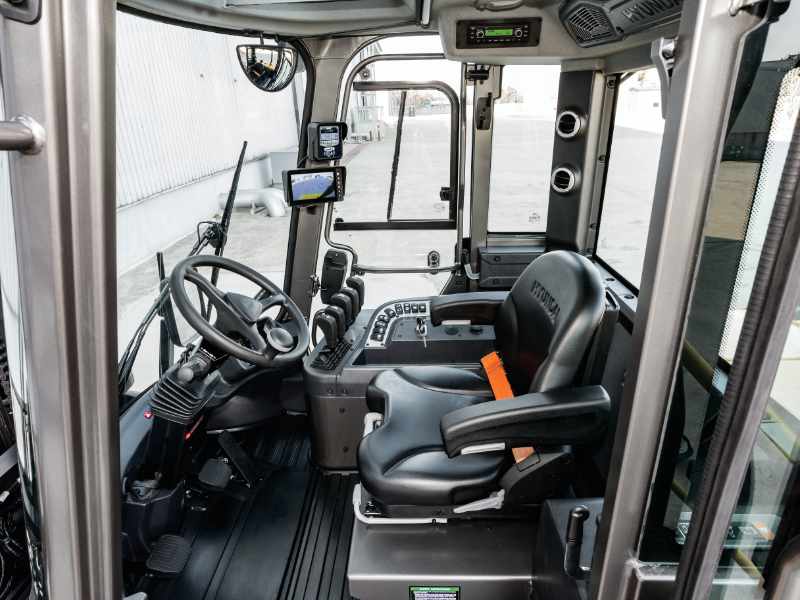

NEXT GENERATION OPERATOR’S CABIN
Designed with customer feedback, this quiet, comfortable cabin features a full-suspension Grammer™ seat and controls that improve operator command of the vehicle.
EASY-TO-USE
STEERING WHEEL
The steering column adjusts 3.3 inches up and down and 36° forward and backward for precise handling and the wheel features a reduced diameter for maximum comfort and control.

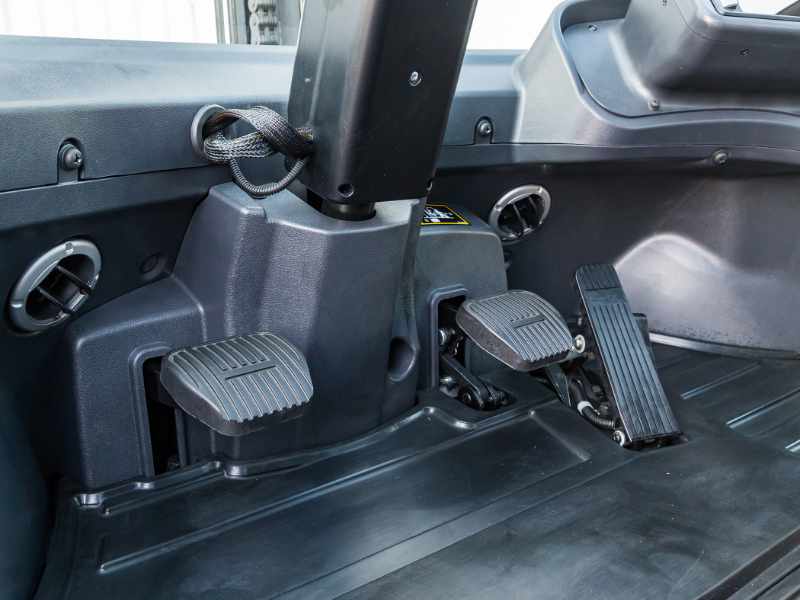

CONVENIENT INCHING AND BRAKE PEDALS
The hanging-type braking and inching pedals reduce leg fatigue and feature two additional air conditioning vents above the pedals to improve air flow and operator comfort.

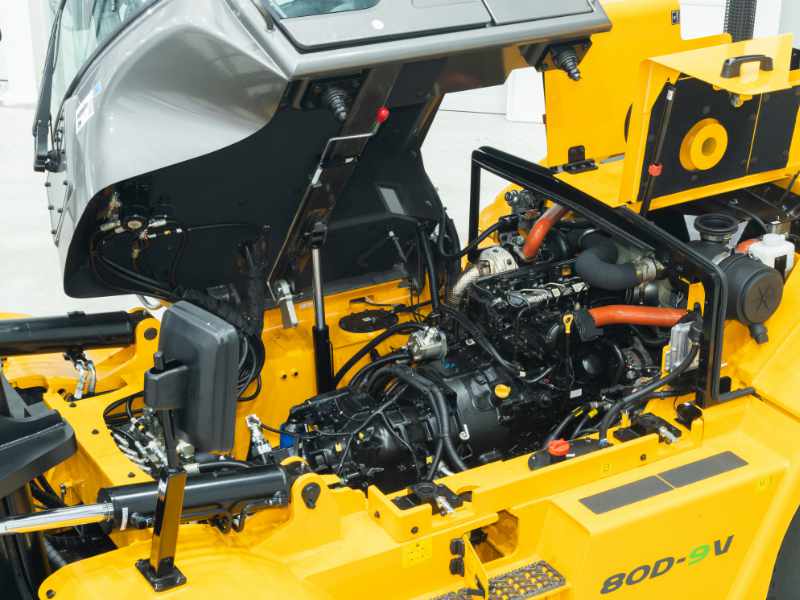

TILTING CABIN F0R
EASIER SERVICING
The cabin tilts up to 52° for easy access to the powertrain, hydraulics, and electrical systems while the wing-type engine room cover allows quick access to the cooling system.

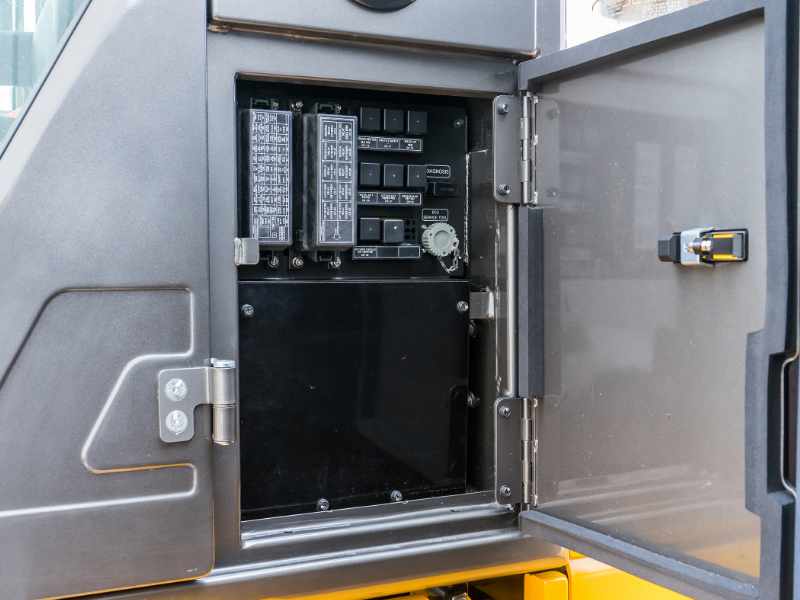

SEPARATE, PROTECTED FUSE AND RELAY BOX
Frequently serviced fuses and relays are housed in a separate, airtight compartment outside the cab to help protect electrical reliability and reduce maintenance time.
ONBOARD DIAGNOSTICS
IN THE LCD CLUSTER
The multifunction cluster’s onboard diagnostics include maintenance tracking with safety and maintenance alerts to continually monitor equipment status.
AUTO PARKING BRAKE
When the engine stops or OPSS activates, the parking brake applies automatically to help prevent accidents and can also be applied or released with a dedicated button.

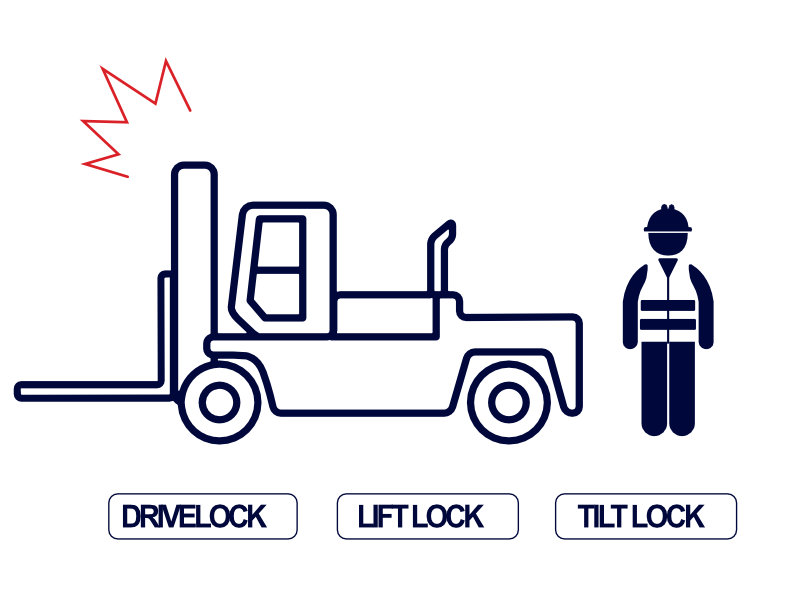

OPSS SYSTEM
To safeguard your operation and staff, the comprehensive Operator Presence Sensing System restricts travel, lift, lowering, and tilt functions when the operator leaves the seat.
SPEED LIMIT
You can set the maximum travel speed to help prevent speeding related accidents. Even with the limit enabled, hill climbing ability and mast performance remain at a high level.
| LOAD CAPACITY | 15,500-17,500 lbs. |
| TRAVEL SPEED (UNLOADED) | 21.0-21.2 mph |
| ENGINE MODEL | Hyundai DN03 |
| POWER | 110 hp/2,300 rpm |
| LENGTH TO FACE OF FORKS | 144.7-156.3 in. |
| CAB HEIGHT | 102.2-105.5 in. |
| OVERALL WIDTH | 82.2-86.4 in. |
| TURNING RADIUS | 135.3-145.7 in. |
