This BRJ-9 is designed to help you reach new heights of productivity. With smooth, precise handling, intuitive controls, innovative features, maximum operator comfort, and simplified maintenance, it can help you cut costs as you increase your operation’s efficiency and profitability.
LOAD CAPACITY
3,200-4,000 lbs.TIRE TYPE
PolyurethaneBATTERY TYPE
48V Lead-Acid
TIGHT TURNING RADIUS
The BRJ-9 features a compact profile allowing it to achieve a tight turning radius so operators can more efficiently navigate even the tightest aisles and narrowest spaces.
EXCELLENT GRADEABILITY
To help you move more loads more quickly over uneven and sloped surfaces, the BRJ-9 offers a gradeability range from 11-13% with a max speed of 8.7 miles per hour.
LITHIUM-ION BATTERY
The optional Li-ion battery features rapid charging in just 2 hours, with no daily maintenance, and up to 15% savings on energy bills while delivering fast lifting and travel speeds.

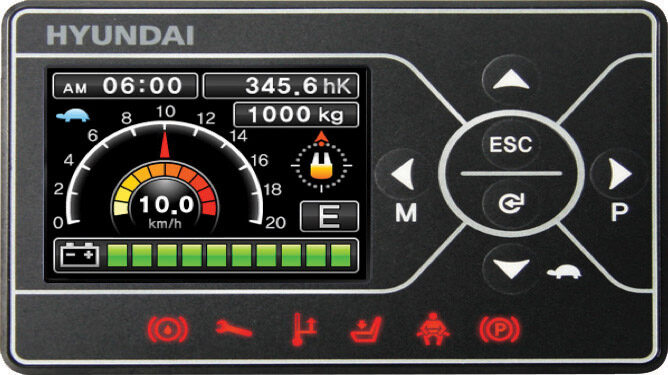

MULTIFUNCTION LCD CLUSTER
Advanced monitor consolidates and displays essential equipment information, real time data, onboard, diagnostics, data logging, safety features, maintenance tracking and more.

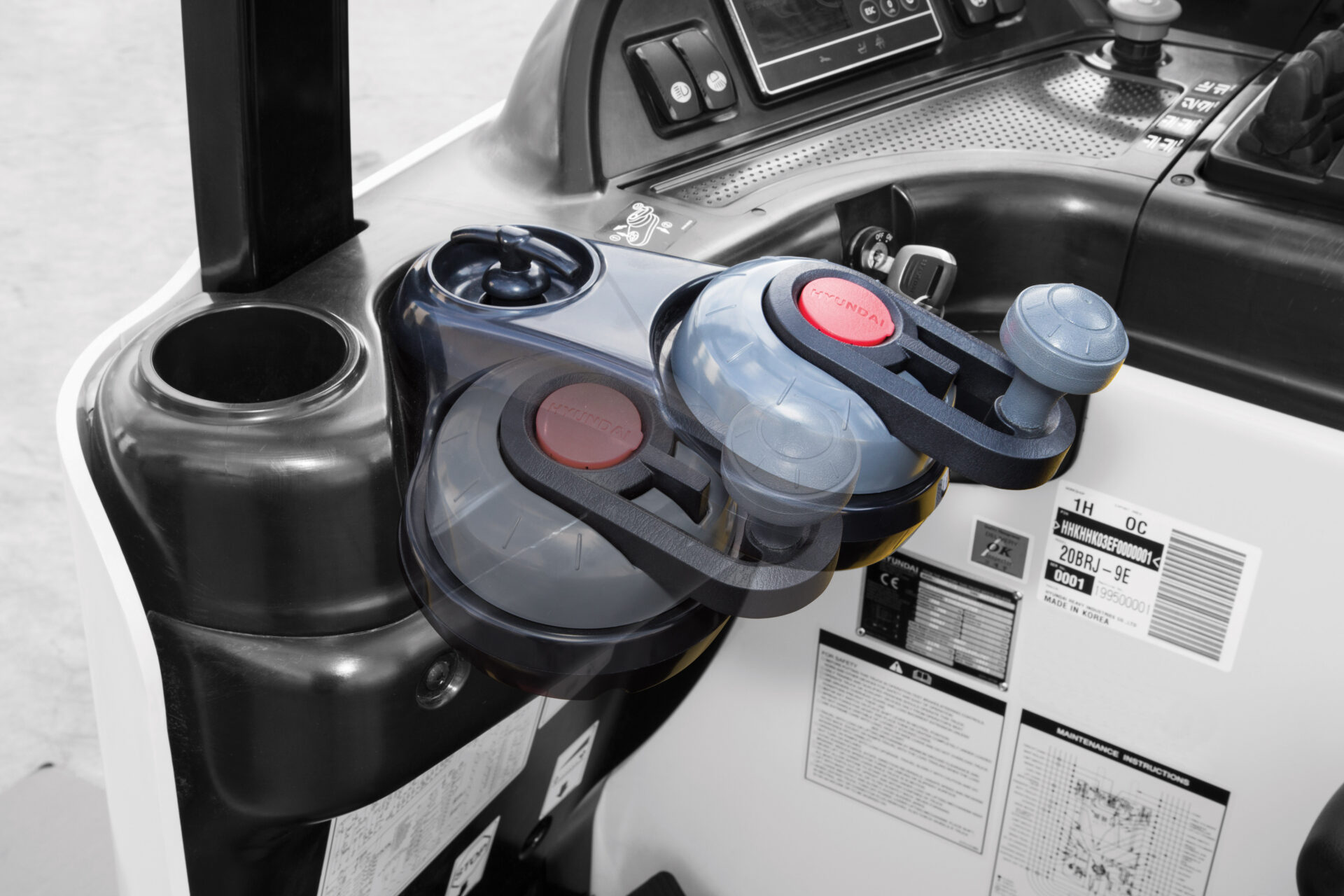

ERGONOMIC STEER HANDLE
The steering control handle is coupled with an efficient power steering system that, together, provide exceptionally smooth and precise steering for maneuvering around tight spaces.
FINGERTIP HYDRAULIC CONTROL
The ergonomic control levers allow operators to precisely raise and lower the platform with minimal effort, control the travel function, and use the horn, all with just one hand.
EASY BATTERY REPLACEMENT
To cut downtime and keep your operation moving, the BRJ-9 Series is equipped with a side battery removal assembly for fast and easy battery removal and replacement.
GREATER COMPONENT ACCESS
Maintaining a BRJ-9 is made easier thanks to highly accessible maintenance points, including an easily reached compact fuse box and hydraulic filter.

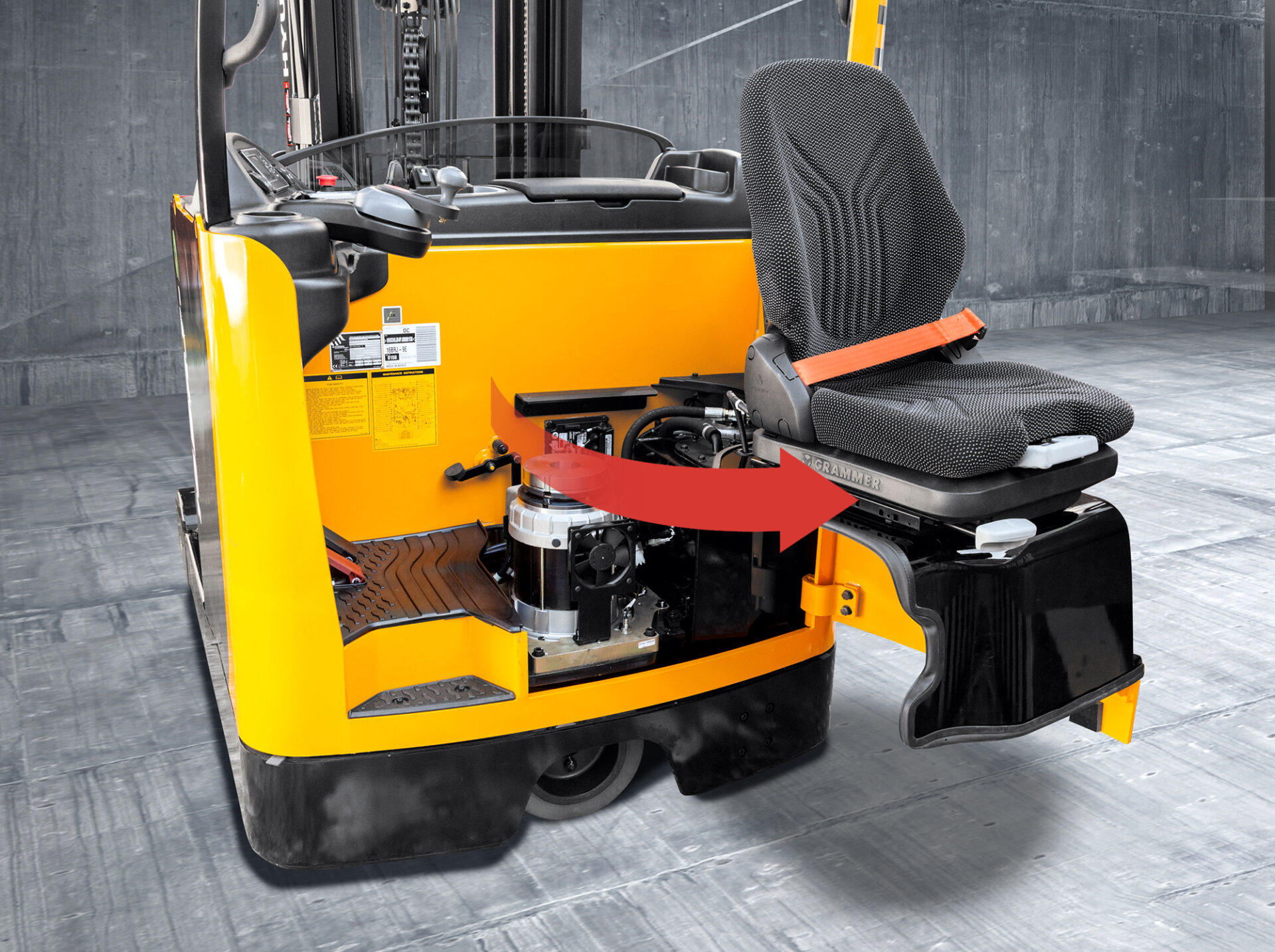

EASIER DAILY MAINTENANCE
To further reduce downtime, the BRJ-9 features a hinged hood that makes access to the controller, AC motor, and other components quick and easy.
HILL ASSIST CONTROL
This important feature prevents the machine from rolling back after coming to a stop on inclines or declines – important when operating on ramps or working on uneven surfaces.

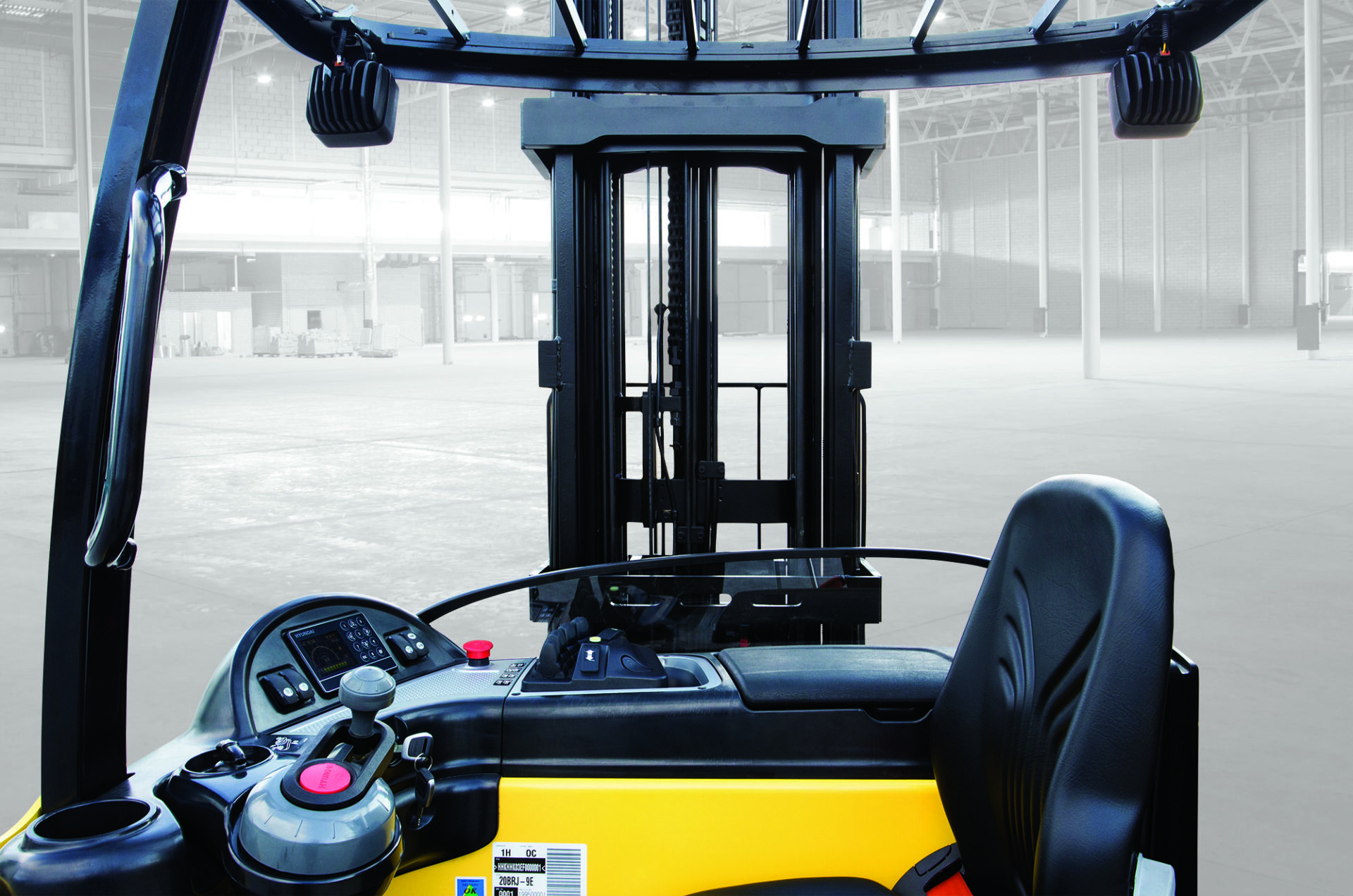

EXCELLENT VISIBILITY
The optimized lift cylinder arrangement gives your operators wider visibility. Safety is further enhanced with a panoramic mirror that expands the driver’s view when backing up.

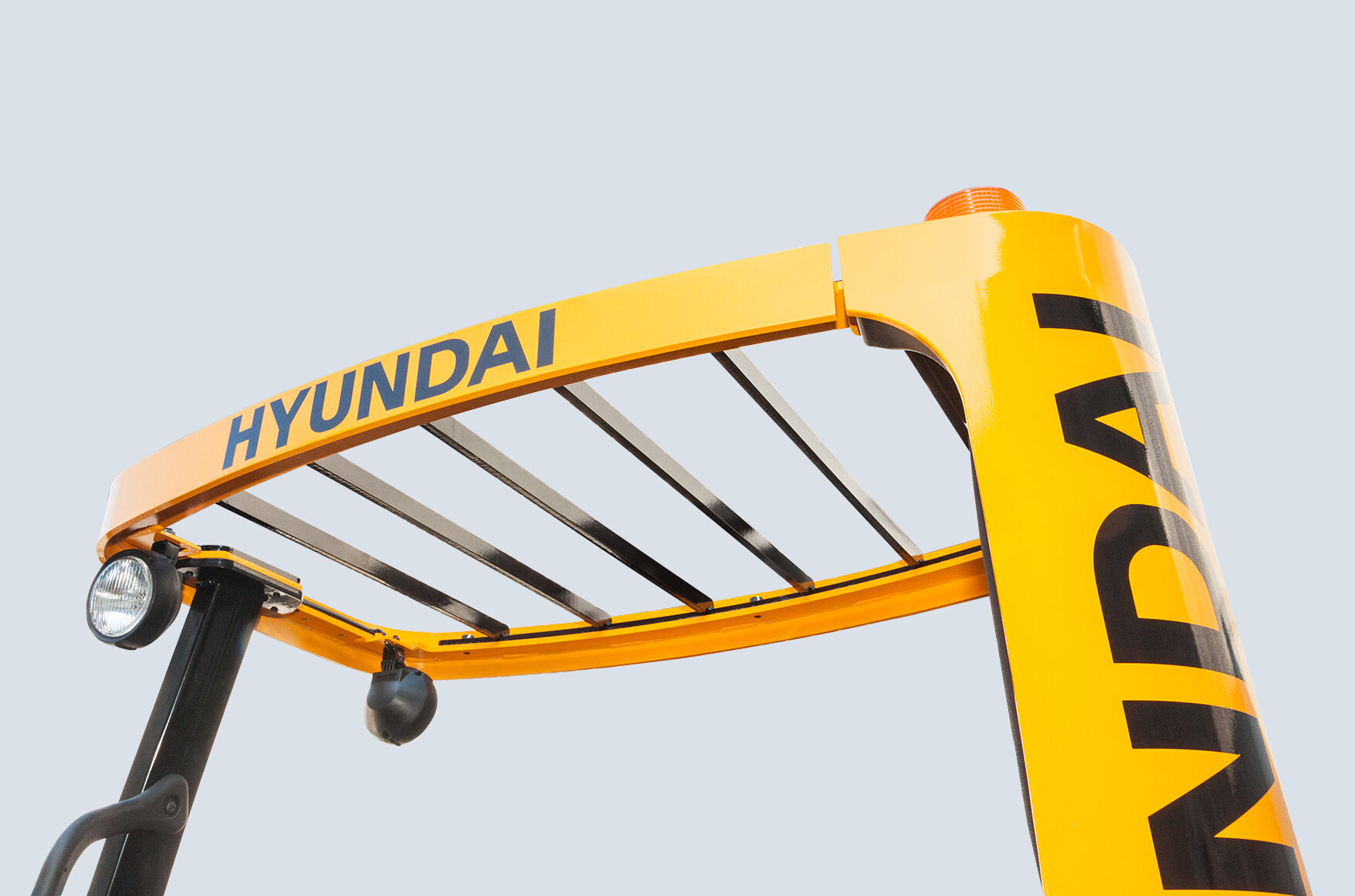

STRONG OVERHEAD GUARD
The durable, rugged overhead guard meets ISO 6055 and ANSI regulations to help safeguard operators even when operating in tough environments and performing hazardous work.
| LOAD CAPACITY | 3,200-4,000 lbs. |
| TRAVEL SPEED (UNLOADED) | 8.7 mph |
| VOLTAGE | 48V |
| LENGTH TO FACE OF FORKS | 51.6-54.9 in. |
| OVERHEAD GUARD HEIGHT | 83.3-84 in. |
| OVERALL WIDTH | 50.3-50.8 in. |
| TURNING RADIUS | 66.3-68.6 in. |
