The 9A Series dual fuel forklifts bring you the ultimate in versatility, operator comfort, increased productivity, and simplified maintenance. With its dual fuel, you can seamlessly switch from LPG to gasoline with no downtime or refueling delays. But it offers so much more, including innovative features that will drive up your efficiency, while driving down your costs.
LOAD CAPACITY
7,000 LBS.TIRE TYPE
PneumaticENGINE MANUFACTURER
Hyundai L4KB

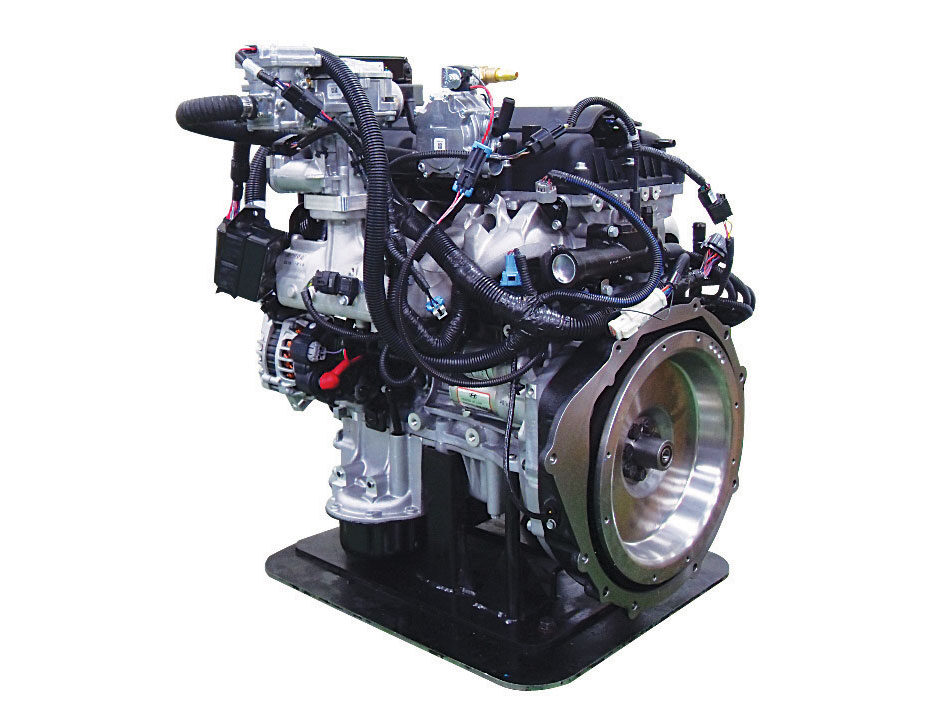

POWERFUL HMC L4KB ENGINE
Delivering proven performance, this powerful, efficient engine is fully compliant with EPA/CARB Tier-IV emission standards, and sill offers fast travel speeds and outstanding gradeability.

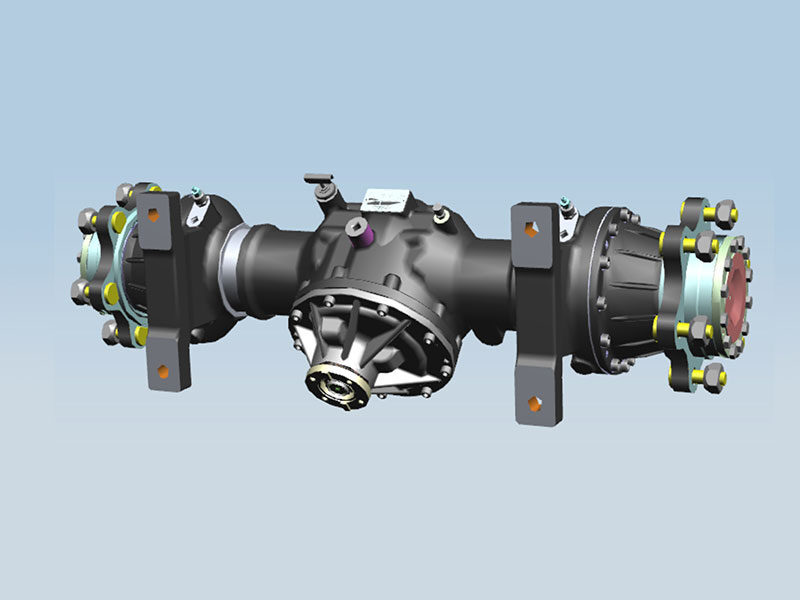

RUGGED DRIVE AXLE
The reinforced drive axle is separable from the transmission, ensures reduced vibration, smoother performance, and easier maintenance and includes an oil-cooled wet disc brake.

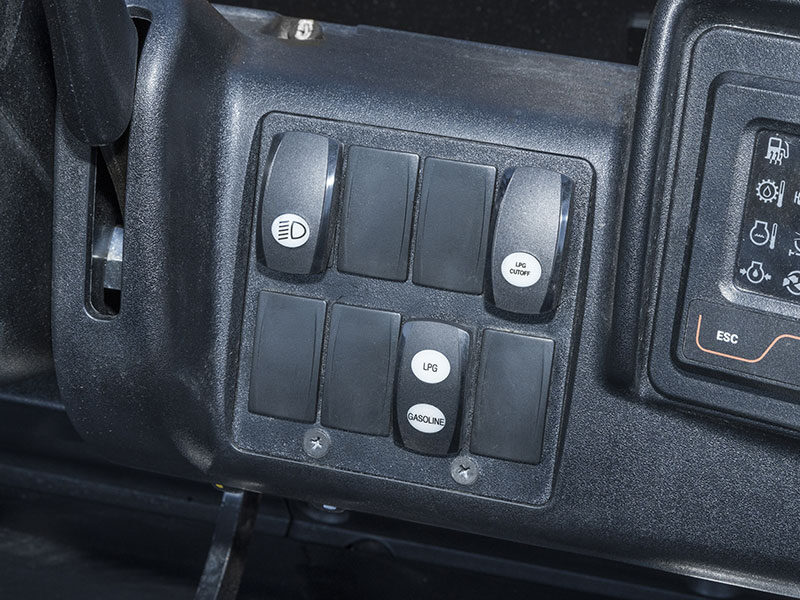

DUAL FUEL SYSTEM
The 9A Series features a 13-gallon gas tank and is designed to support simultaneous use of LPG and gas, allowing for a seamless switch as one fuel source runs out to cut downtime.

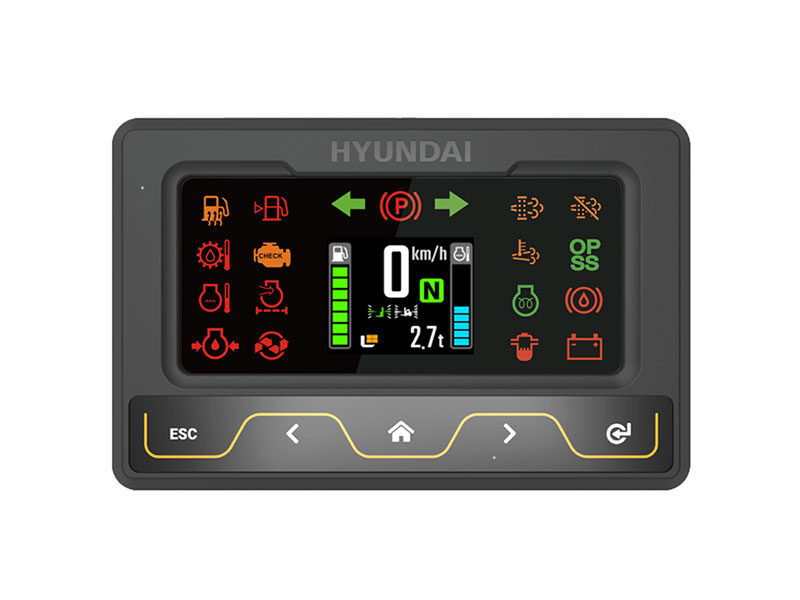

MULTIFUNCTION DISPLAY
The LCD cluster consolidates important equipment info, real-time data, onboard diagnostics, data logging, safety features, maintenance tracking and more.
GRAMMER™ SEATSION GRAMMER™ SEAT
This full suspension seat adjusts to the operator’s body weight and includes an Emergency Locking Retractor seatbelt for enhanced safety and standard heating for greater comfort.

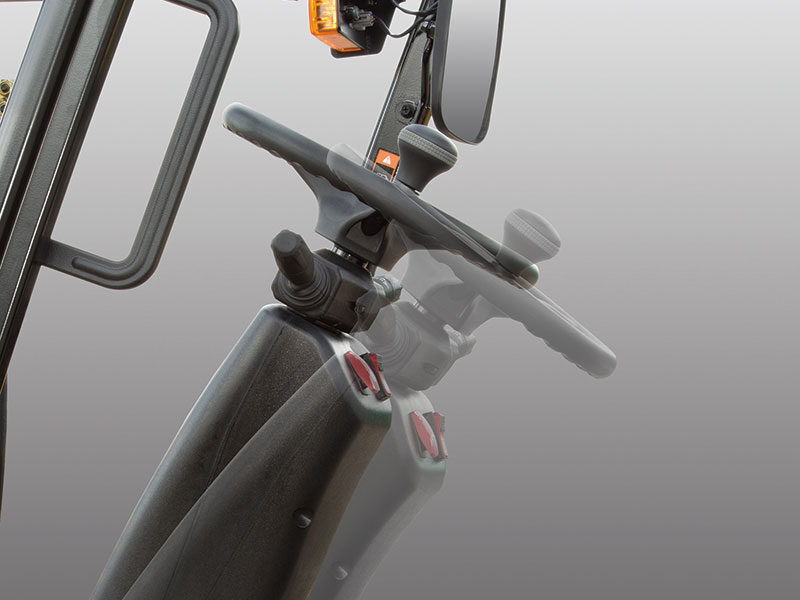

ADJUSTABLE STEERING WHEEL
For optimal driving comfort and control, the steering column angle can be effortlessly adjusted to the optimal position. Plus, the pedals are mounted directly to the console to reduce fatigue.

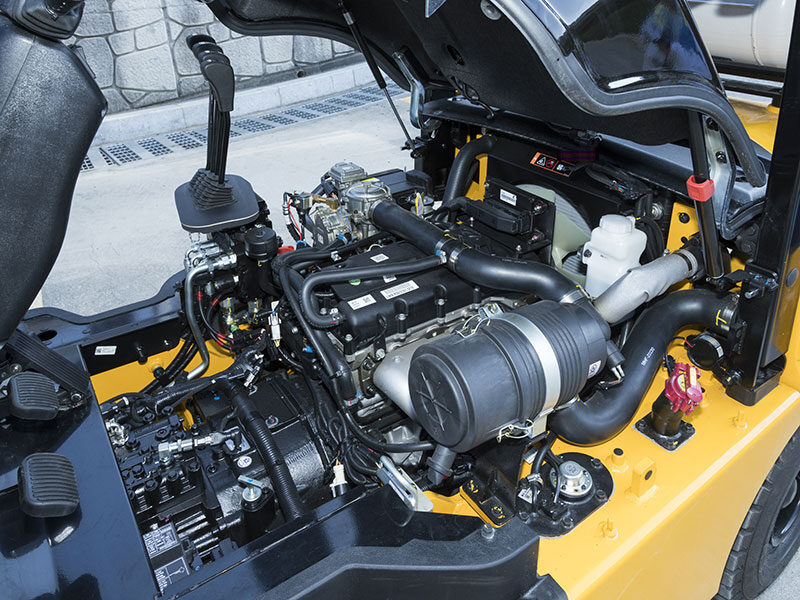

EASY SERVICE ACCESS
The large, highly accessible engine compartment offers ready access to key components including an enlarged 7” air cleaner with enhanced filtration and extended service intervals.

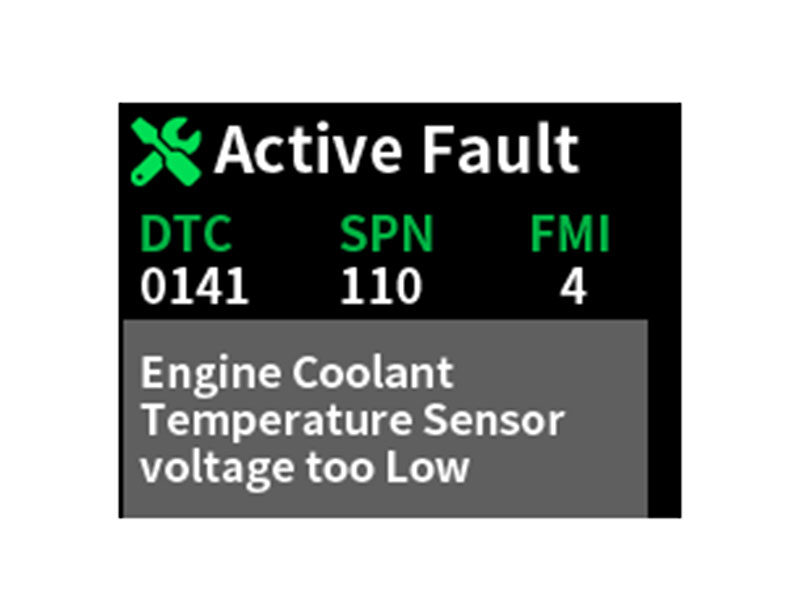

ENGINE FAILURE CONTROL
Visible in the cluster, operators have ready access to engine status and failure codes all available without the need for a separate diagnostic tool, plus service intervals are easily tracked.

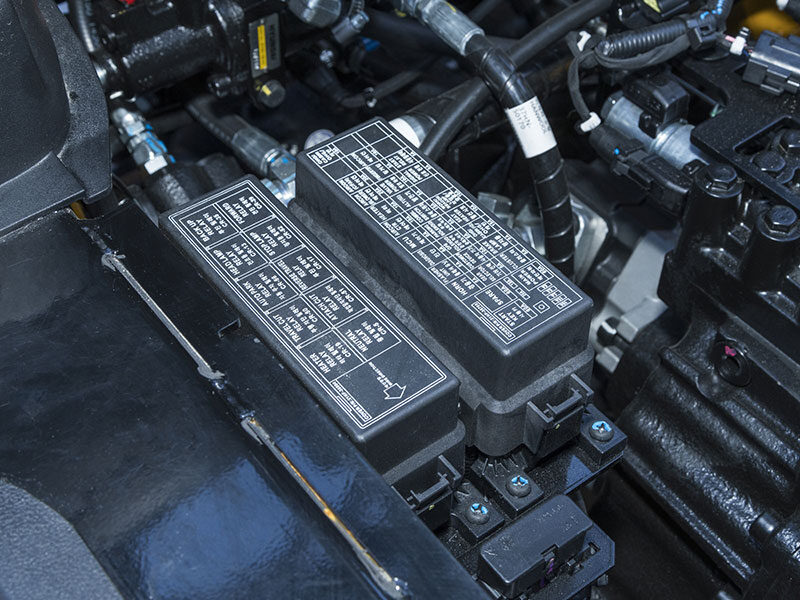

PROTECTED COMPONENTS
To assure greater reliability, maintenance ease, and more uptime, key components are carefully positioned and protected, including water- and dust-proof fuse and relay boxes.
OPSS SYSTEM
To prevent accidents and protect staff, this system requires the operator to be present, in the seat, to have use of the travel and hydraulic functions, including tilt, lift, and lowering.
HILL ASSIST CONTROL
This feature prevents unintended movement while operating the forklift on a grade, incline or decline, giving the operator greater confidence and increasing job site safety.
AUTO-PARKING BRAKE
This intelligent system automatically applies the parking brake and initiates an audible and visual alarm reminding the operator to engage the park brake switch should they leave the unit.
| LOAD CAPACITY | 7,000 lbs. |
| TRAVEL SPEED (UNLOADED) | 11.6 mph |
| ENGINE MODEL | Hyundai L4KB |
| POWER | 60.2 hp/2,300 rpm |
| LENGTH TO FACE OF FORKS | 109 in. |
| OVERHEAD GUARD HEIGHT | 86.2 in. |
| OVERALL WIDTH | 48.4 in. |
| TURNING RADIUS | 98 in. |
